PRODUCT
DETAILS |
 |
ST-IPD-87A
 |
 |
SURVEILLANCE/SECURITY
|
 |
Styco |
 |
2.0-Megapixel IP Camera
3.6 mm.
0.1 Lux,
120 Feet LED Distance,
PoE Option,
High quality H.264
Algorithm
|
|
|
|
|
|
|
| |
|
Description

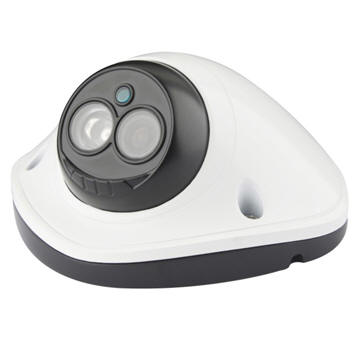

2.0 Megapixel IP Vandal-proof Outdoor
Dome Camera, H.264 Compression
1080P HD resolution, High performance HI
DSP
Built-in Micrphone, Micro SD Card
Support (Optional)
Array LED up to 30M IR Night Vision
Distance, Built-in 3.6 or 6mm Megapixel
Lens
Built-in 802.3af Compliant PoE Optional,
Support ONVIF 2.0 |
Specifications:
|
Model
|
ST-IPD87A
|
|
IP Camera
Type
|
2.0
Megapixel IP
Camera
|
|
DSP System
|
Embedded
RTOS design,
dicaryon 32
bit
DSP(Hi3516C),Pure
Hardware
compression,
watchdog
|
|
Images
Sensor
|
1/3 inch 2.0
Megapixel
Progressive
scan CMOS (Aptina
9P006 )
|
|
Pixel
|
1920(H)×1080(V)
|
|
Video
Processing
|
H.264 video
Code,
support
Dual-stream,
AVI; Support
stream
0.1M-6Mpbs/
frame:1~30fps
adjustable
|
|
Audio
|
Built-in
Microphone
|
|
Storage
|
Built-in SD
Micro Card
(Optional)
|
|
Video output
|
Main Stream
1920×1080;
Sub stream:
704×576
|
|
Resolution
|
HD1080P:1920×1080 HD720P:1280×720
D1:
640×480 CIF:320×240
|
|
Video bit
rate
|
2.0
megapixel 25
frames (real
time),
Support 1-25
frames/second
adjustable
|
|
Board Lens
|
3.6mm
Megapixel
Lens (6mm
Optional)
|
|
Minimum
Illumination
|
Color:
0.6Lux@F1.2,
B/W 0.08 Lux
@F1.2(IR ON
)
|
|
Infrared LED
|
1PC Array
LED; 30
Meters IR
Night Vision
distance
|
|
AGC/White
Balance
|
AUTO
|
|
Day-night
Switch
|
Support
day-night
switch (ICR)
|
|
Network
|
Ethernet
(10/100
Base-T),RJ-45
connector,
support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
|
|
Function
|
Support WEB
configuration,
OSD,
real-time
video
transmitting,
support
motion
detect ,
message,
download,
video type
storage,
screenshot
storage,
Support CMS,
remote
management
software
|
|
ONVIF
|
Support
|
|
Mobile
Monitor
|
Support
iPhone,
Windows
Mobile,
Black Berry,
Symbian,
Android
|
|
Power over
Ethernet
(POE)
|
Optional
|
|
Power Supply
|
DC12V /
180mA/350mA
(IR on)
|
|
Working
Environment
|
-10 to +50
°C /
20～80%RH
|
|
Dimension
|
136×123×65mm
|
|
Package
includes
|
IP Camera
x1, CD-ROM
x1 (setup
program and
user manual)
|
|
|
|
|
|
|
Specifications may
change without prior notice. We are not responsible
for any typographical error. Some images are
simulated, not representing actual product. Some
product packages do not include everything you see
on the picture (i.e. lens in a brick camera,
computer monitor in a DVR system). Sony, Super HAD,
Exview HAD, ExWave are trademarks of Sony. |
|
|
