PRODUCT DETAILS
CMDW182
DVR / IP Cameras
Evemia

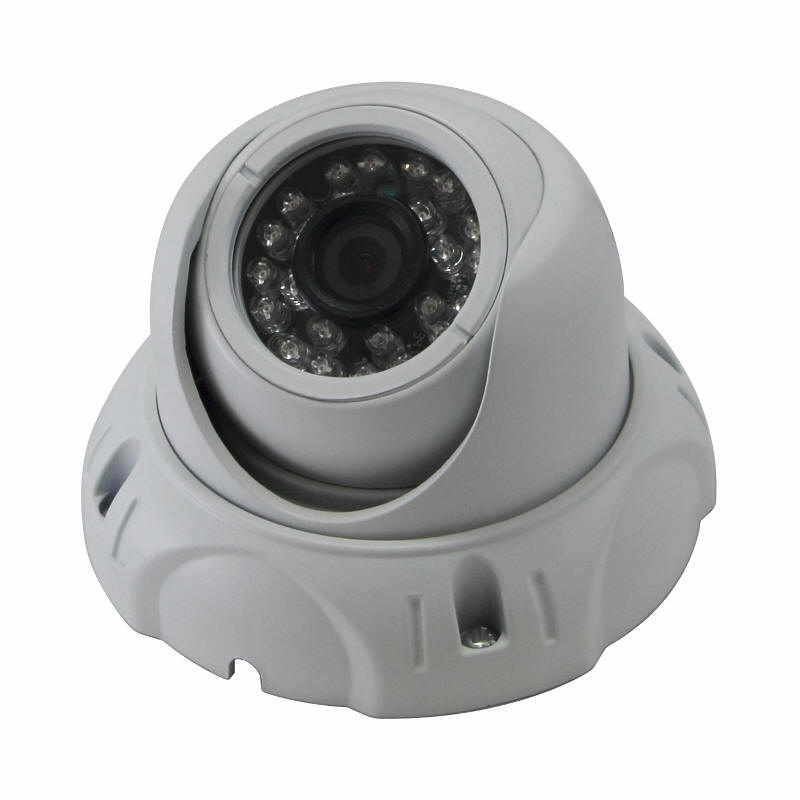

Panasonic 2.2 Megapixel Full HD 1080P (HD-SDI) Night Vision 3.0 Megapixel HD Vari-focal Lens Digital-WDR Outdoor Vandal Resistance Dome



Description

FEATURES

  • 1/2.7" Sony Exmor CMOS Image Sensor
  • 1080P@30FPS
  • 3.6mm 2 Megapixels IR Cut Lens
  • 24 LEDs , up to 60ft

SPECIFICATIONS

Model Number CMDW182
Image Sensor 1/2.7" Sony Exmor CMOS Image Sensor
Signal System NTSC
Effective Pixels 1920(H) x 1080(V)
Horizontal Resolution 1080P@30fps
Minimum Illumination 0 LUX (IR on)
IR Distance 24 LEDs, up to 60ft
Electronic Shutter 1/60 - 1/100,000 sec
S/N Ratio >60dB
Video Output 1.0Vp-p, 75ohms
Supply Voltage DC 12V (±10%)
Mounting Lens 3.6mm 2 Megapixels IR Cut Lens
Power Consumption Min Req: 1A
Housing Aluminum Alloy


Specifications may change without prior notice. We are not responsible for any typographical error. Some images are simulated, not representing actual product. Some product packages do not include everything you see on the picture (i.e. lens in a brick camera, computer monitor in a DVR system). Sony, Super HAD, Exview HAD, ExWave are trademarks of Sony.
