Description

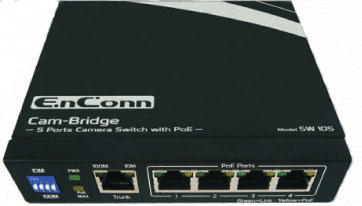

Cam bridge is versatile 5
port PoE camera switch specifically
design for IP camera connection. It can
provide power and data link up to 4
cameras. with this noval design, this
switch can transmit power and data
signal over 200 M (600 FT) Cat-6 with
out extra devices needed. In Addition,
it's equipped with port- to -port
isolation to improve switch bandwidth
management when connected to multiple
cameras. |
|
Model Number |
SW105 |
|
Camera Port |
4 |
|
Trunk Port |
1 |
|
Rate |
100Base- Tx or 10
Base - T,
Full-Duplex |
|
Distance Mode |
Adjustable, 300ft /
600ft |
|
PoE Standard |
IEEE 802.3 af/at |
|
Maximum PoE Power |
55W @65W power
adaptor
75W @ 90W power
adaptor |
|
Port - to - Port
Data Isolation |
Yes |
|
Loopback Protection |
Yes |
|
Rack Mountable |
Yes |
|
Wall Mountable |
Yes |
|
Dimensions |
L 133mm, D148mm,
H31mm |
|
|
|
|
|
|
Specifications may
change without prior notice. We are not responsible
for any typographical error. Some images are
simulated, not representing actual product. Some
product packages do not include everything you see
on the picture (i.e. lens in a brick camera,
computer monitor in a DVR system). Sony, Super HAD,
Exview HAD, ExWave are trademarks of Sony. |
|
|
