    PRODUCT DETAILS
PEC10

CCTV-Camera- HD-IP
Enconn
Ethernet over Coax Converter



Description

The Enconn EOC-AN/IN Ethernet over Coax extender enables transmission of 100Mbps Ethernet data over 200m(650ft) of RG6 video-grade coax cable.



Enconn EOC-AN/IN Ethernet over Coax is a perfect solution for updating Analog based Security Surveillance systems to IP based control systems using much of the original coax cabling infrastructure. Much of the existing coax cable and devices such as cameras may be integrated into a more scalable, manageable solution.


The EOC-AN/IN Ethernet over Coax consist of 2 easy to install unit:

Features

  • Ethernet over Coax

  • 100 Mbps Ethernet data over 200m(650ft) of RG6 video-grade coaxial cable.

  • IP Security Surveillance over existing coax cable

  • Small compact packaging

  • Fast and easy to install

  • Scalable

  • Baseband Transmission

  • Full duplexer

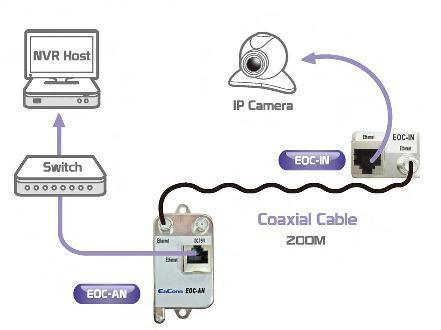

EOC AN/IN application

Specifications

Model PEC10
Data Rate 10/100 Mbps
Link distance 200m (650 ft)
Cable RG-6, RG-59 video-grade coaxial cable or above
Powering 12VDC (included)
Dimensions (WxDxH, mm) EOC-AN: 65x41x17(mm) ; EOC-IN: 36x24x15(mm)


Specifications may change without prior notice. We are not responsible for any typographical error. Some images are simulated, not representing actual product. Some product packages do not include everything you see on the picture (i.e. lens in a brick camera, computer monitor in a DVR system). Sony, Super HAD, Exview HAD, ExWave are trademarks of Sony.
